Crossconnector round/round (EM081) | Hot-dip galvanised
morepic-1

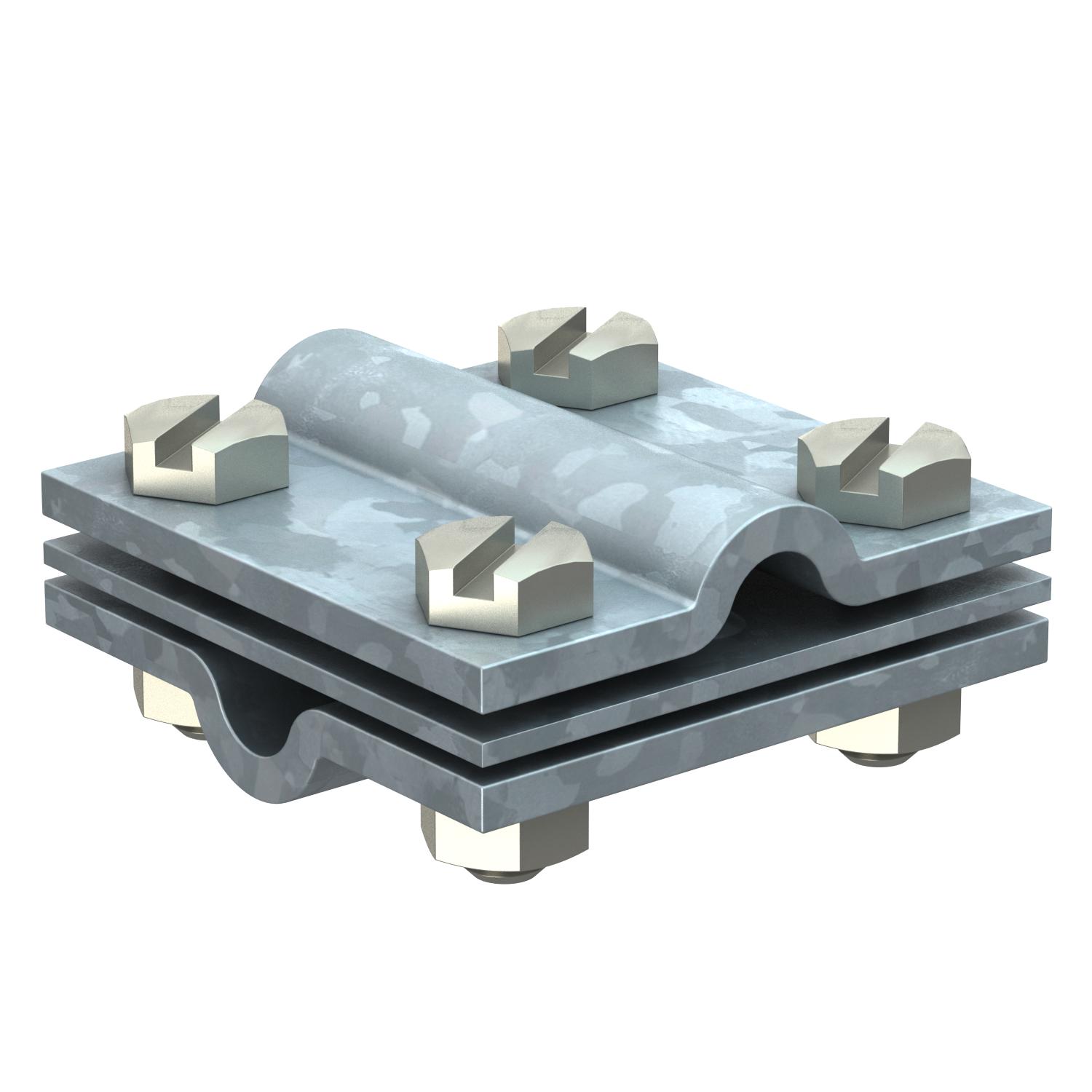

Crossconnector round/round (EM081)

Item no. 903895

Product description
Product description
For connecting to earthing system.
Technical data

Technical data

Dimension 60x60mm
Flat conductor width, conductor 1, max. 30 mm
Material Steel
Round conductor diameter, conductor 1, max. 10 mm
Round conductor diameter, conductor 1, min. 8 mm
Round conductor diameter, conductor 2, max. 10 mm
Round conductor diameter, conductor 2, min. 8 mm
Surface Hot-dip galvanised
Type of connector Cross-connectors
Type of fastening screw Hexagonal bolt

Dimensions

Length 60 mm
All types

All types

Types 0 Item no. Quantity VPE1
EM081 RR 903895
25 piece
