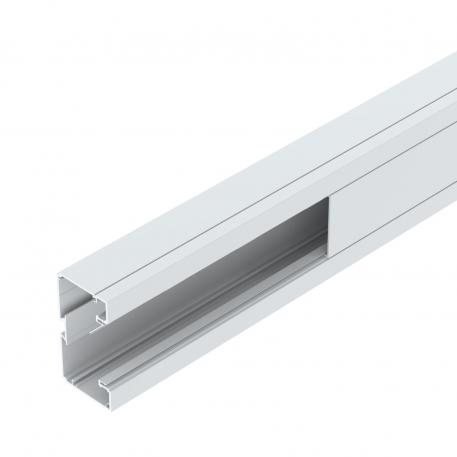

Device installation trunking Route STYLE (LK015)

Item no. / Types

Width

Height	70 mm

Product description

Product description

For concealed cable routing and time-saving device installation indoorsOber- und Unterteil im Set, Kanalkupplung ist als Zubehör erhältlich.

Technical data

Antibacterial treatment	no
Cable retaining clip	no
Colour	Pure white; RAL 9010
Cover mounting type	Internal
Cover supplied	yes
Cover width	79 mm
Dimension	70x130x2000mm
Duct connector	yes
Halogen-free	no
Height	70 mm
Length	2.000 mm
Material	Polyvinylchloride
Mounting perforation in base	yes

Number of covers	1
Number of insertable partitions	1
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK07.
Protective film	yes
Rear panel version (inner side)	Continuous DIN rail
Rectangular shape	yes
Symmetrical	no
Usable cross-section	6036 mm²
Width	130 mm

All types

All types

Types	Width	Height	Item no.	Quantity	VPE1
LK015 70x110	110 mm	70 mm	920042	m	120 m
LK015 70x130	130 mm	70 mm	920043	m	12 m
LK015 70x170	170 mm	70 mm	920044	m	6 m

Accessories

Products	Types	Item no.	Quantity	SSU
Device installation box Route STYLE single (LK016)	LK016 GED1	920046	piece	10 piece
Device installation box Route STYLE double (LK017)	LK017 GED2	920047	piece	3 piece
Internal corner Route STYLE (LK018)	LK018 70x130	920049	piece	1 piece
End piece Route STYLE (LK019)	LK019 70x130	920052	piece	5 piece
External corner Route STYLE (LK020)	LK020 70x130	920055	piece	1 piece
Flat angle Route STYLE (LK021)	LK021 70x130	920058	piece	1 piece
