Earth rod V4A (EM140) 1.500
morepic-1 morepic-2

Earth rod V4A (EM140)

Item no. 901347

901347 / EM140
1.500 mm
Product description
Product description
For discharging electrical currents of an earthing system into the ground.

• Use of stainless steel (V4A) mandatory for direct earthing in the ground acc. to DIN 18014

• Possibility of connecting through spigot and drill hole

• Product meets the requirements of VDE 0185-305 (IEC 62305)

Technical data

Technical data

Dimension 1,5m
External diameter 20 mm
Length 1.500 mm
Lightning current carrying capacity H1/150 kA
Material Stainless steel 1.4401
Profile type Round D=20 mm
Short-circuit current (50 HZ)(1 s;≤300°C) 4,2 kA
All types

All types

Types Length Item no. Quantity VPE1
EM140 1.500 mm 901347
5 PU
Accessories

Mounting accessories

Products Types Item no. Quantity SSU

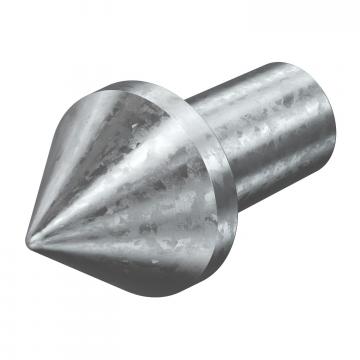

Earthing tip for earth rod (EM147) Earthing tip for earth rod (EM147) EM147 20 BP 901348
5 piece

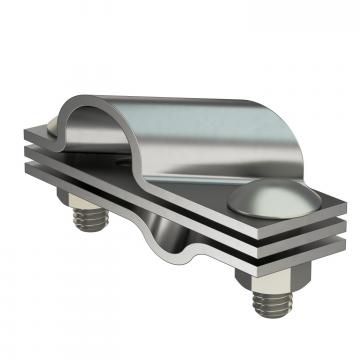

Connecting strap for round wire (EM148) Connecting strap for round wire (EM148) EM149 20 V4A 901350
5 piece

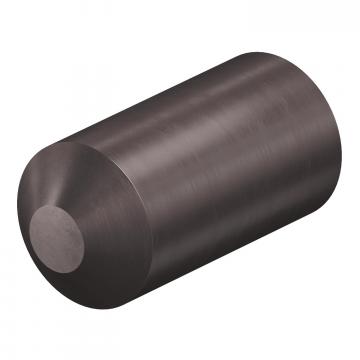

Driving head for earth rod (EM148) Driving head for earth rod (EM148) EM148 20 901349
1 piece
Downloads

Download

EU declaration of conformity EM140 / 901347 , 0.10MB , pdf
Download
