External corner Route STYLE (LK020) 137 | 180
morepic-1

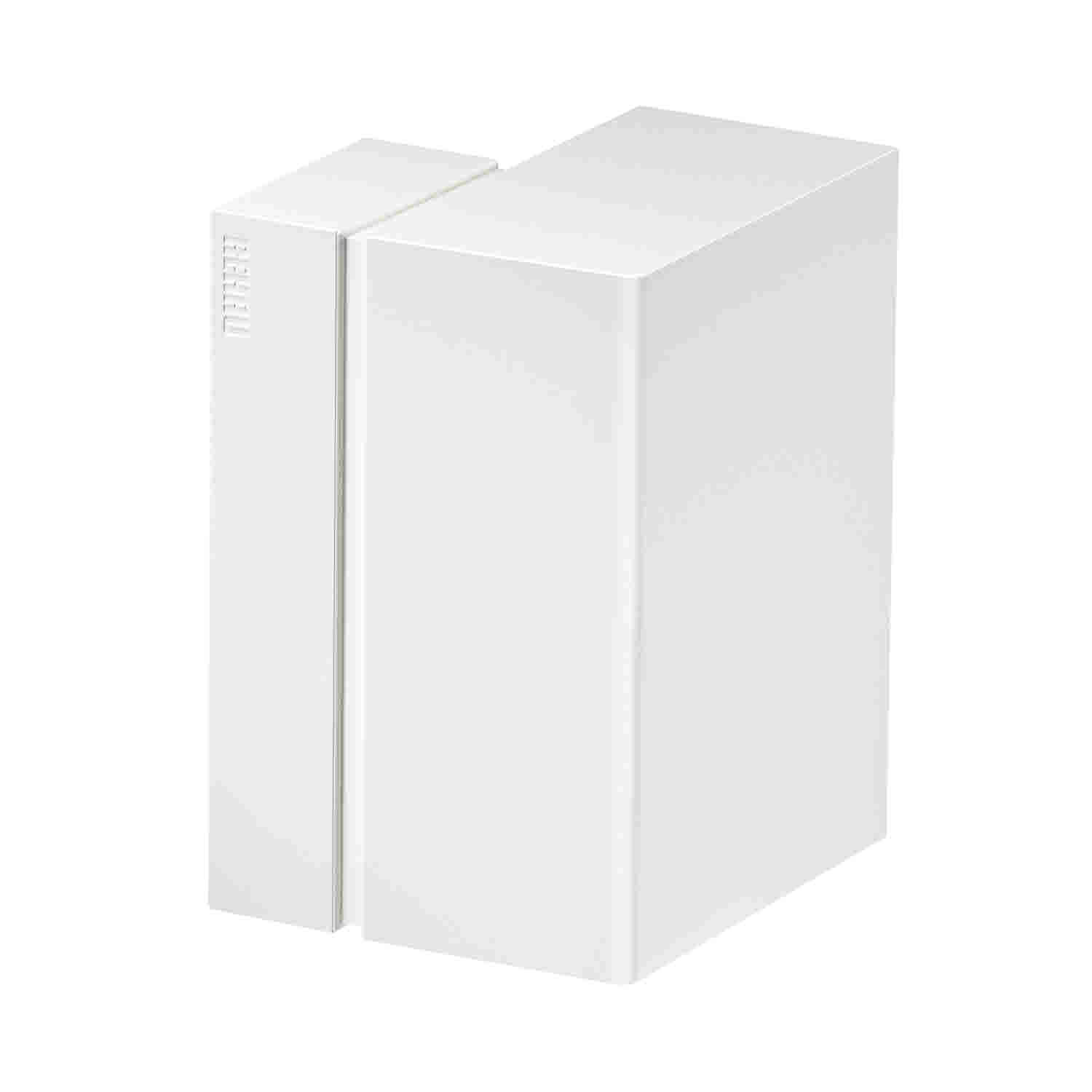

External corner Route STYLE (LK020)

Item no. 920056

137 mm
Product description
Product description
Flexible fitting for directional change
Technical data

Technical data

Angle range, max. 93 mm
Angle range, min. 85 mm
Antibacterial treatment no
Cable retaining clip no
Colour Pure white; RAL 9010
Cover mounting type Cross-over
Dimension 118x137x180mm
Duct connector no
Halogen-free yes
Height 180 mm
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Mounting perforation in base no
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Protective film no
Symmetrical no
Version for Hood fitting
Width 137 mm
All types

All types

Types Width Height Item no. Quantity VPE1
LK020 70x110 137 mm 120 mm 920054
1 piece
LK020 70x130 137 mm 140 mm 920055
1 piece
LK020 70x170 137 mm 180 mm 920056
1 piece
Downloads

Download

EU declaration of conformity LK020 70x170 / 920056 , 0.13MB , pdf
Download
