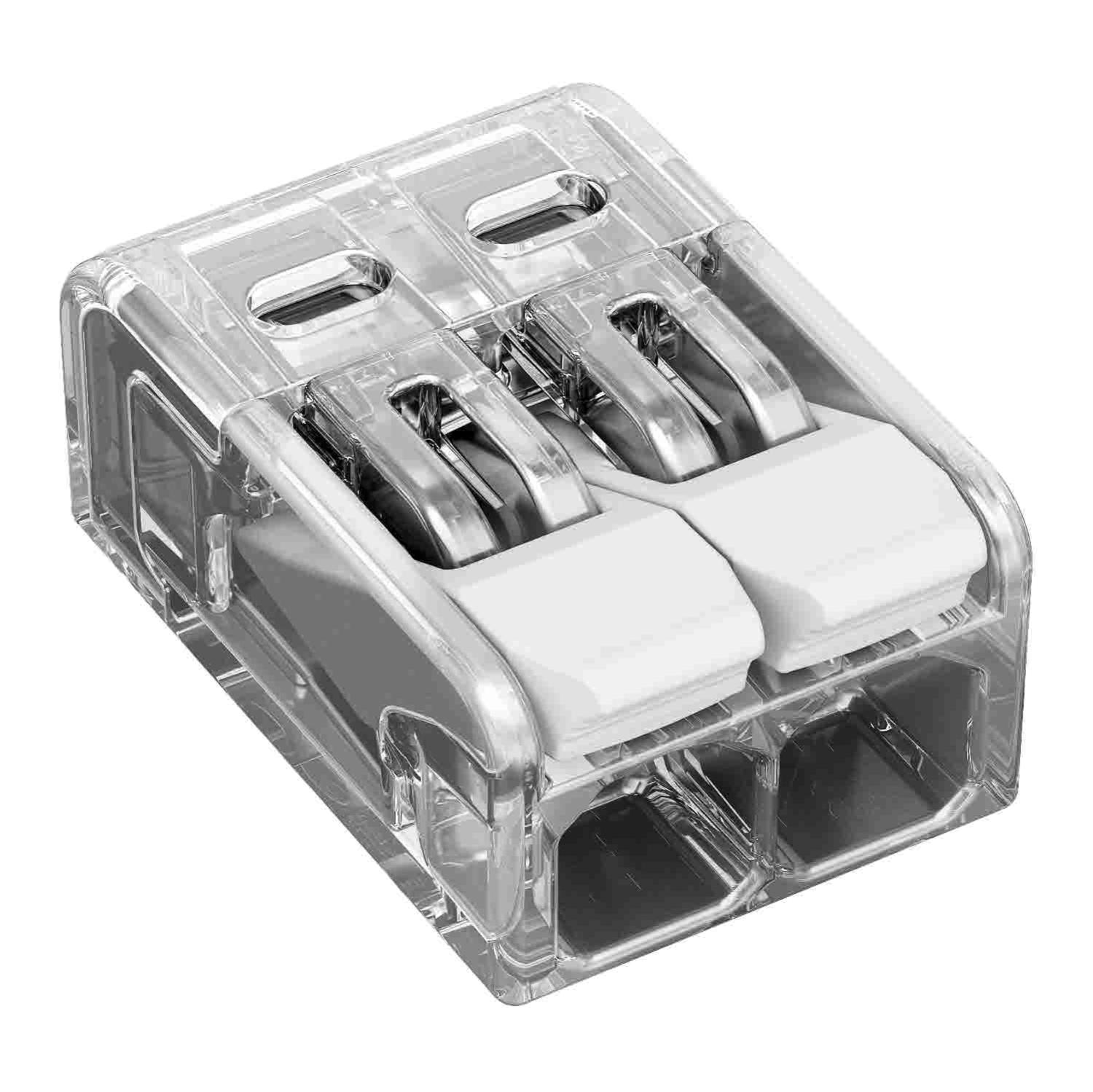

Mini-universal connector with lever 2-pin (EM129)

Item no. 905195

905195 / EM129 2
2
Product description
Product description
To connect conductors in connection sockets, junction boxes, canopies or renovation sockets.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Verband der Elektrotechnik, Elektronik und Informationstechnik
  • Nominal voltage 450 V
  • Polycarbonate
  • Halogen-free
Technical data

Technical data

Colour Transparent
Connectable conductor cross-section, multi-wire, max. 2,5 mm²
Connectable conductor cross-section, single-wire, max. 2,5 mm²
Dimension 0,2-2,5mm²
Height 8,5 mm
Length 16,3 mm
Material Polycarbonate
No. of terminals 2
Nominal cross-section, max. 2,5 mm²
Nominal cross-section, min. 0,2 mm²
Nominal current 24 A
Nominal voltage 450 V
Number of poles 2
Number of terminals 1
Stripping area AWG, max. 11
Suitable for flexible conductors yes
Suitable for multi-wire conductors yes
Suitable for solid conductors yes
Transparent yes
Width 11 mm
With actuating levers yes
All types

All types

Types Number of poles Item no. Quantity VPE1 VPE2
EM129 2 2 905195
100 piece 1600 piece / Cardboard box
