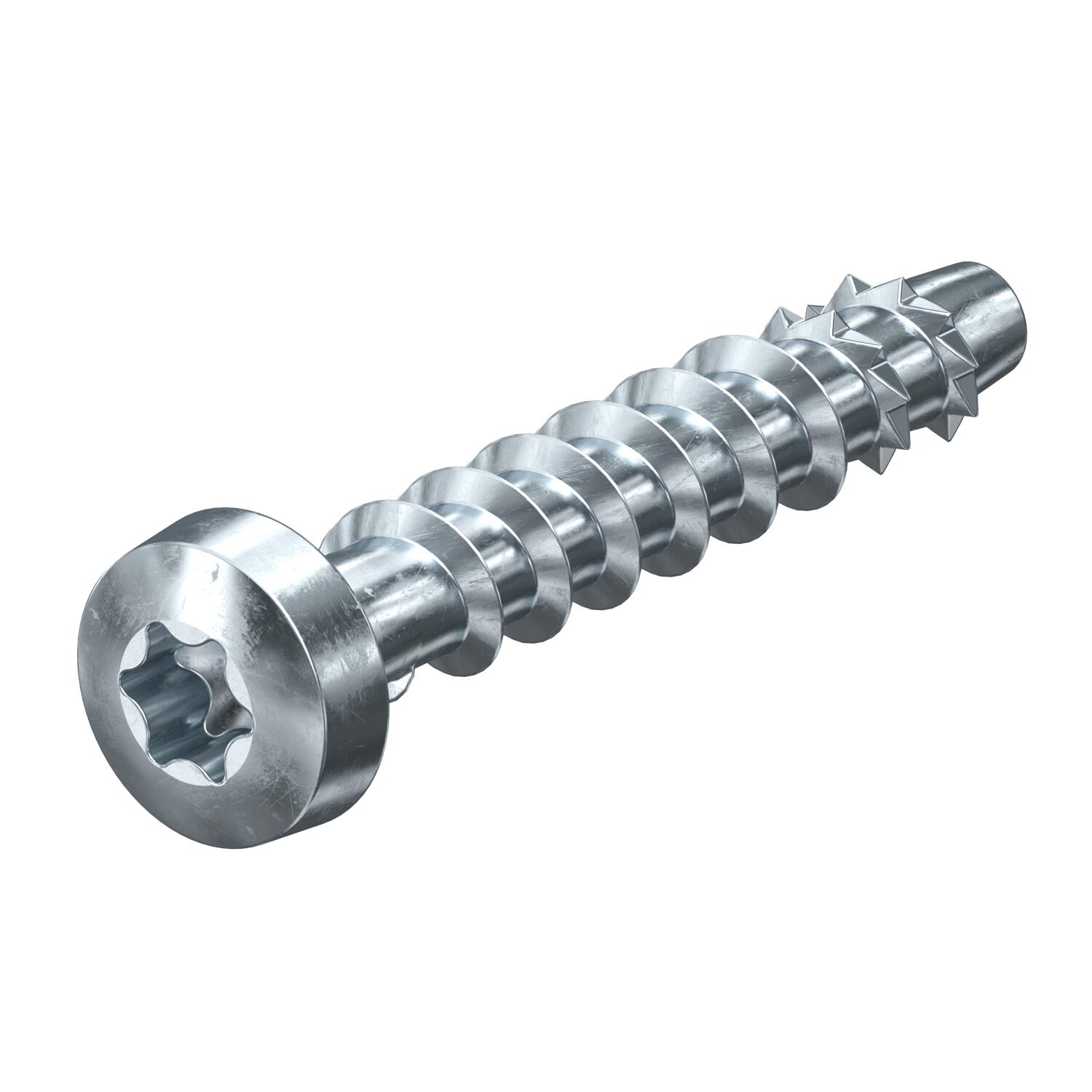

Screw anchor (MZ123)
morepic-1 morepic-2

Screw anchor (MZ123)

Item no. 950128

Product description
Product description
For direct installation of e.g. spacer clips or cable clamps out of metal without dowels in cracked and non-cracked concrete and masonry.

European Technical Assessment, including characteristic values under fire exposure to fire resistance R 120 for use in functional integrity in accordance with DIN 4102-12.

ETA-15/0784: Mechanical fasteners for use in concrete

ETA-15/0785: Fasteners for use in concrete for redundant non-structural systems

ETA-20/0132: Screw anchor for use in masonry

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Torx
  • Panhead
Technical data

Technical data

Dimension 6,0x40mm
Dimension 6 x 40
Drill hole depth 40 mm
Drill hole diameter, min. 5 mm
Fire resistance class EN 13501-1 R30
Hardened yes
Head diameter 11,2 mm
Head shape Cup head
Length 40 mm
Material Steel
Screw system Torx
Surface Electrogalvanized
Thread diameter ST 6
All types

All types

Types Item no. Quantity VPE1 VPE2
MZ123 6x40 950128
100 piece 1000 piece / Cardboard box
Downloads

Download

EU declaration of conformity MZ123 6x40 / 950128 , 0.20MB , pdf
