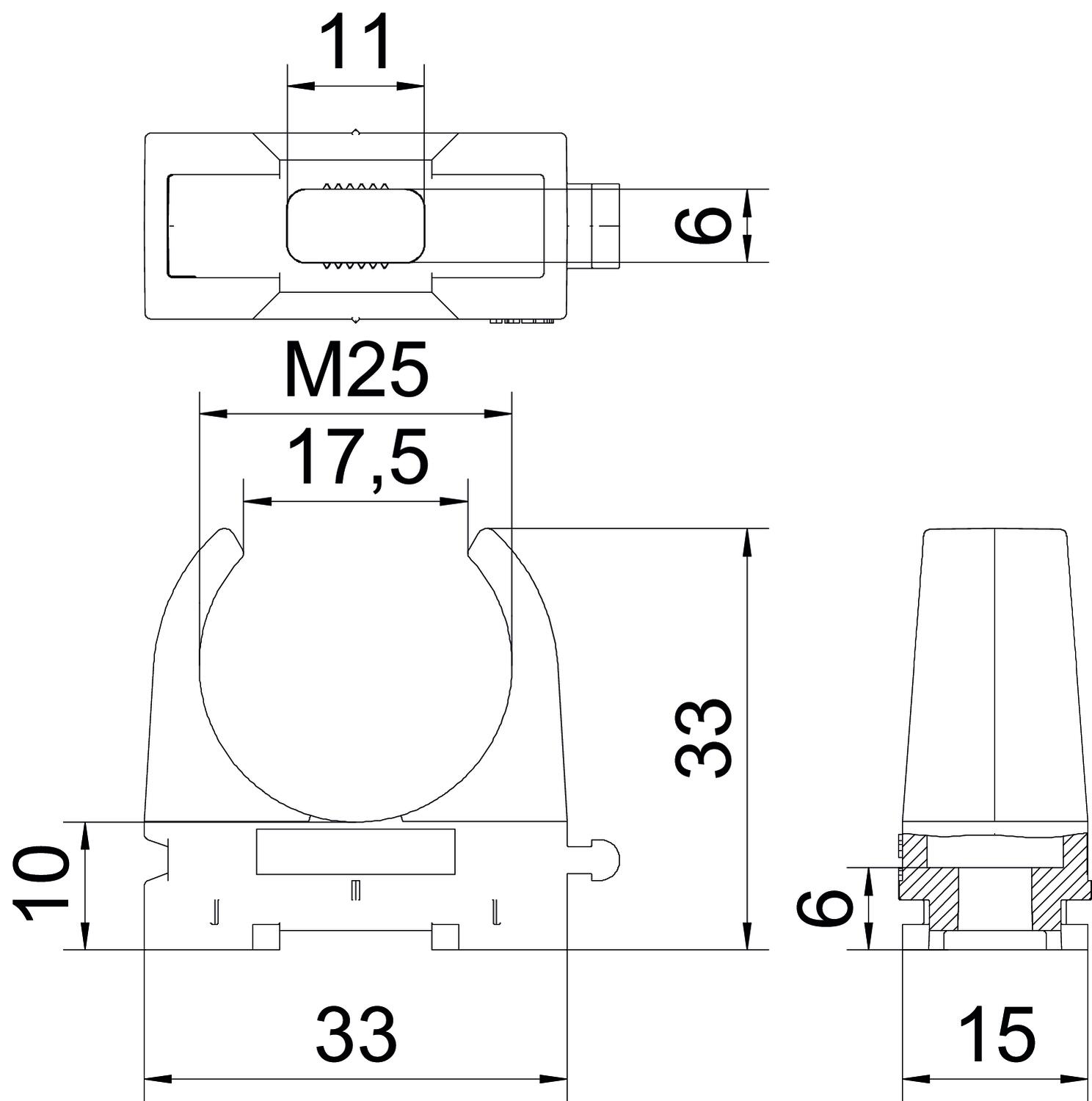

Snap-On pipe clip, OPDZ 6 mm grey (OZ048)

Item no. 981950

Product description
Product description
For fixing conduit pipes.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Polypropylene
  • Halogen-free
  • Gewindegröße Rohr M25
Technical data

Technical data

Closed no
Colour Light grey; RAL 7035
Dimension 25-26mm 1"
Drill hole 5 mm
Expandable yes
Fastening hole 5 mm
Fastening type Screw hole
for pipe diameter 25-26
For pipe diameter, max. 26 mm
For pipe diameter, min. 25 mm
Material Polypropylene
Nominal size M25
Number of cables/pipes 1
Thread metric 25
UV-resistant no
With inlay no
All types

All types

Types Nominal size Item no. Quantity VPE1 VPE2
OZ048 OPDZ M16 / PG9 981902
100 piece 1200 piece / Cardboard box
OZ048 OPDZ PG11 981910
100 piece 1200 piece / Cardboard box
OZ048 OPDZ M20 / PG13,5 981924
100 piece 1200 piece / Cardboard box
OZ048 OPDZ PG16 981937
100 piece 1200 piece / Cardboard box
OZ048 OPDZ M25 981950
50 piece 600 piece / Cardboard box
OZ048 OPDZ M32 981958
50 piece 600 piece / Cardboard box
OZ048 OPDZ M40 981960
30 piece 360 piece / Cardboard box
OZ048 OPDZ M50 994628
30 piece 300 piece / Cardboard box
OZ048 OPDZ M63 994629
20 piece 200 piece / Cardboard box
Downloads

Download

EU declaration of conformity OZ048 OPDZ / 981950 , 0.13MB , pdf
Download
